Product name : Red and Black Silicon Wire 10awg Heatproof Soft cable RC Lipo battery
Item : Red and Black Silicon Wire 10awg
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

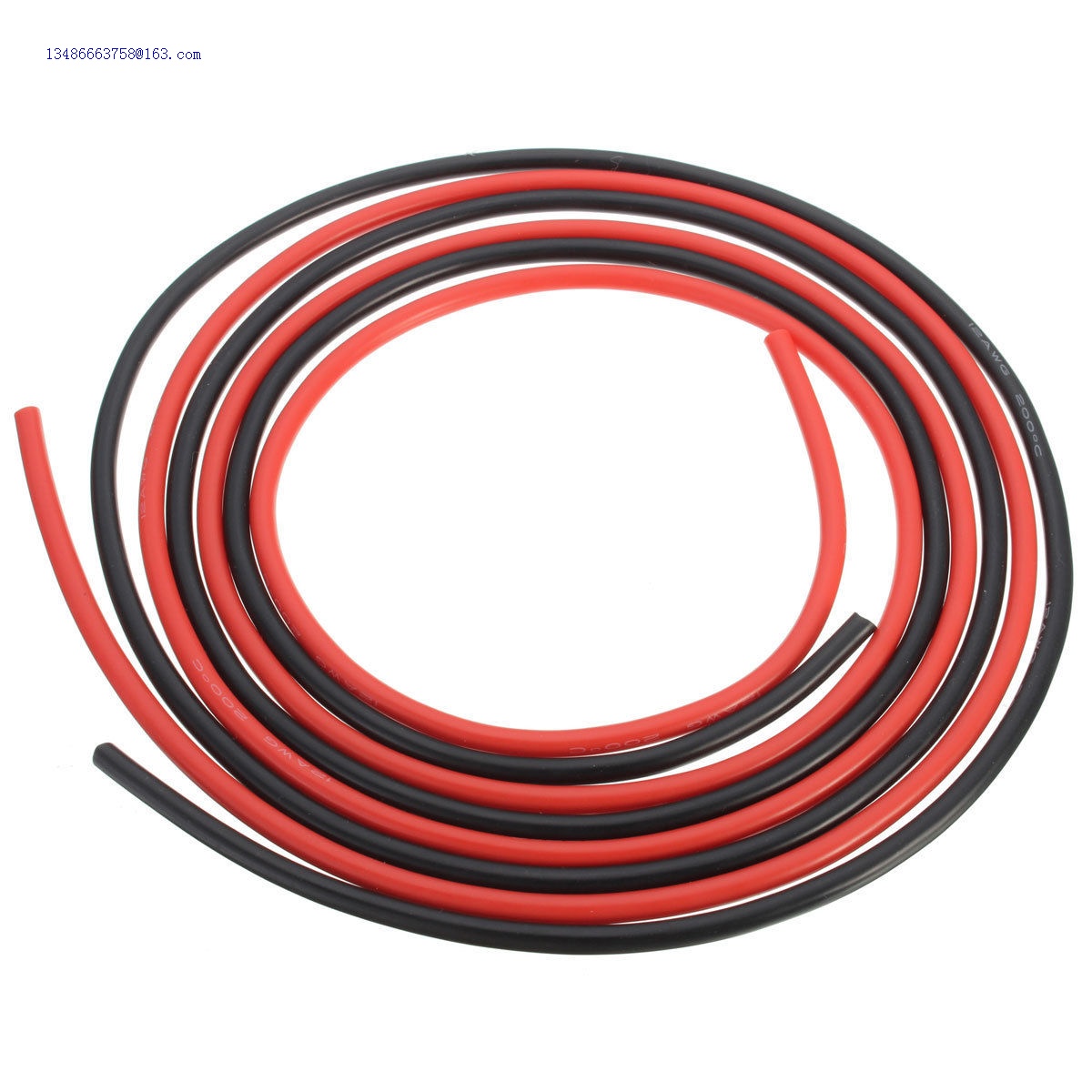

 2 Meter Red and Black Silicon Wire 10awg Heatproof Soft cable RC Lipo battery
Description
High-quality tinned copper inner core, can maintained copper wire for a long time does not oxidize. Silicone outer skin, soft wear-resistant, high temperature resistant, smooth surface.
Wire Diameter: 3.06mm
Conductor Diameter: 5.5mm
Conductor Size: 10 AWG
Conductor Area: 5.3mm2
Nominal Voltage: 600V
Test Voltage: 2000V
Maximum Current: 140A
Resistance: 6.3 Ohms/km
Temperature Range: -60oC to +200oC
Conductor Material: Tinned Copper
Insulator Material: Silicone
