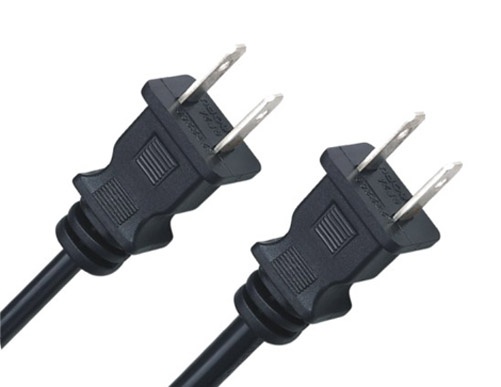

Product name : NEMA 1-15P USA two prong power cord plug with UL and CSA certification
Item : QP2
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Product name : NEMA 1-15P USA two prong power cord plug with UL and CSA certification
Item : QP2
Details :

NEMA 1-15P USA two prong power cord plug with UL and CSA certification.  Built to NEMA 1-15P standards.  Rated up to 15A 125V, 13A 125V or 10A 125V.  Our NEMA 1-15P plugs are fully molded with a low profile ergonomic design and come in a big variety or orientations, sizes and angles

Specifications

Items
Details
Connector Standard NEMA 1-15P plug
Maximum Current rating 15A
Maximum Voltage 125V
Number of Poles and Wires 2 poles, 2 wires
Available Wire Thickness 14 through 18AWG
Outer Mold Material 35P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals cUL file
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C7
 IEC C7 USA

right angle IEC C7
 (IEC C7) USA


down angle IEC C7
 (IEC C7 down angle) USA

IEC C17
IEC C17 USA


NEMA 1-15R
 NEMA 1-15R USA



Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
18/2 SPT-1, SPT-1W, NISPT-1, SPT-2, SPT-2W, NISPT-2, SPT-3, HPN, SVT, SVTO, SJT, SJTW, SJTO, SJTOW, SV, SVO, SJ, SJO, SJOW, SJOOW 10/125
17/2 SVT, SVTO, SV, SVO, SJ, SJO, SJOW, SJOOW 12/125
16/2 SPT-2, SPT-2W, NISPT-2, SPT-3, SVT, SVTO, SJT, SJTW, SJTO, SJTOW, SV, SVO, SJ, SJO, SJOW, SJOOW, HPN 13/125
14/2 SPT-3, SJT, SJTW, SJTO, SJTOW, SJ, SJO, SJOW, SJOOW 15/125
