Product name : CEE7/7 European Schuko three prong right angle power cord plug with VDE
Item : D03
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

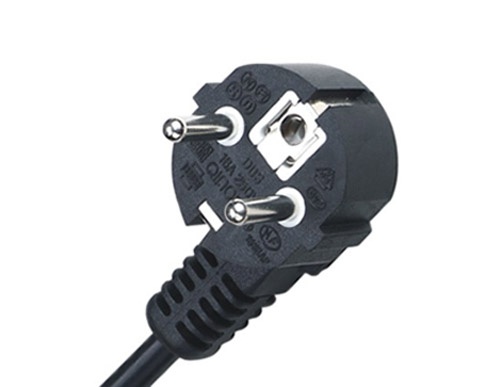

Product name : CEE7/7 European Schuko three prong right angle power cord plug
Item : D03
Details :

CEE7/7 European Schuko three prong right angle power cord plug with VDE and 12 other certifications.  Rated up to 16A 250V. Our European three prong power cord plugs carry all the European country approvals including  OVE, CEBEC, DEMKO, FIMKO, LCIE, VDE, IMQ, KEMA, NEMKO, SEMKO, ESTI, and ASTA certified.  Our European power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

The CEE7/7 is actually a combination of the French CEE7/5 which uses a male prong for grounding and the German CEE7/4 which uses straps on both sides of the plug for grounding.  Almost every European country uses the Schuko CEE7/7 except the UK, Italy, Switzerland and Denmark.

Specifications

Items
Details
Connector Standard Europe CEE7/7 standard Euro 3P right angle plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 1.5mm² through 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals German VDE license# 40005197 and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

IEC C13 right angle IEC C13  IEC C5  right angle IEC C5  IEC C19
Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 10/250
1.00mm² H05VV-F 16/250
1.50mm² H05VV-F 16/250
