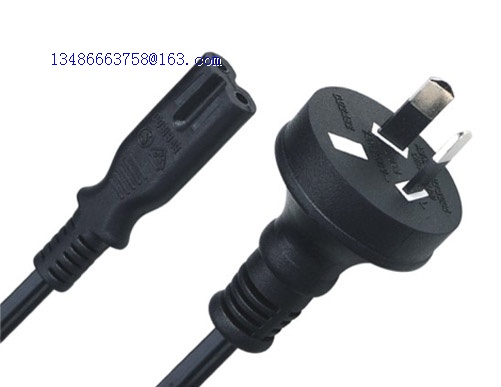

Product name : Australia 2 prong power cord plug with SAA
Item : D05/QT2
 Enlarge Image                   Back
←[Previous Product]


Details:
Product name : Australia 2 prong power cord plug with SAA certification
Item : D05
Details :

AS 3112 Australia 2 prong power cord plug with SAA certification. Rated up to 10A 250V.  Our AS 3112 two prong Australia power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
These are also referred to as AS 3112 2 pin mains plug and Australia two prong mains plug.
AS 3112 is the standard plug specification used in Australia and requires that the live and neutral prongs have at least 50% from base to tip, of a non-conductive coating to help prevent shock if the plug becomes partially dislodged or not plugged in all the way.  This YP-36 Australian 2 prong power plug is the most common Australia 2 prong plug in use for standard and custom Australia mains power leads

Specifications

Items
Details
Connector Standard Australia AS/NZS 3112 2 pin plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Available Wire Thickness 1.0mm² through 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals Australia SAA certificate# 17967
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C7
 (IEC C7) Australia

right angle IEC C7
 (IEC C7) Australia



Available Wire Styles

Gauge/ # Conductors



Cord Type



Electrical Rating (Amps/Volts)



0.75mm² H03VVH2-F 10/250
