Specifications
Items
Details

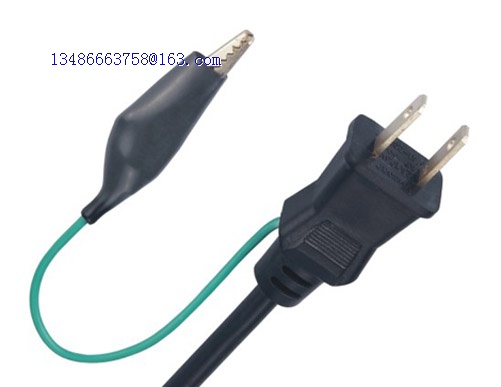

Connector Standard | Japan JIS C 8303 2P plug with separate ground strap (same as USA NEMA 1-15P plug) |
Maximum Current rating | 15A |
Maximum Voltage | 125V |
Number of Poles and Wires | 2 poles, 2 wires |
Available Wire Thickness | 2.0mm² through 0.75mm² |
Outer Mold Material | 50P PVC |
Blade Material | Nickel coated Brass |
Flamability Rating | UL 94V-0 |
color | black is standard but any color available |
Temperature Rating | minus 40C though plus 75C |
Approvals | Japan PSE JET certificate# JET5087-43001-1011 |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
IEC C7
(IEC C7) Japan
right angle IEC C7
(IEC C7) Japan
IEC C17
(IEC C17) Japan
JIS C 8303 receptacle
(JIS C 8303) Japan
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
0.75mm² | VCTF, HVCTF | 7/125 |
1.25mm² | VCTF, HVCTF | 11/125 |
